Ionboard S22 Full Spectrum LED Grow Light Panel - 60x60cm Coverage for Indoor Plants, Hydroponics, Greenhouses & Home Gardening

• Dimmable LED grow light designed with an optimised spectrum and diode positioning, to maximise plant yields.
• Utilises full-spectrum Samsung LM301H LEDs to achieve powerful lighting optimised for all plant stages.
• Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
• Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
• Constructed on a unibody aluminium board and IP-65 rated for grow environments with higher humidity and heat.

PRODUCT DESCRIPTION

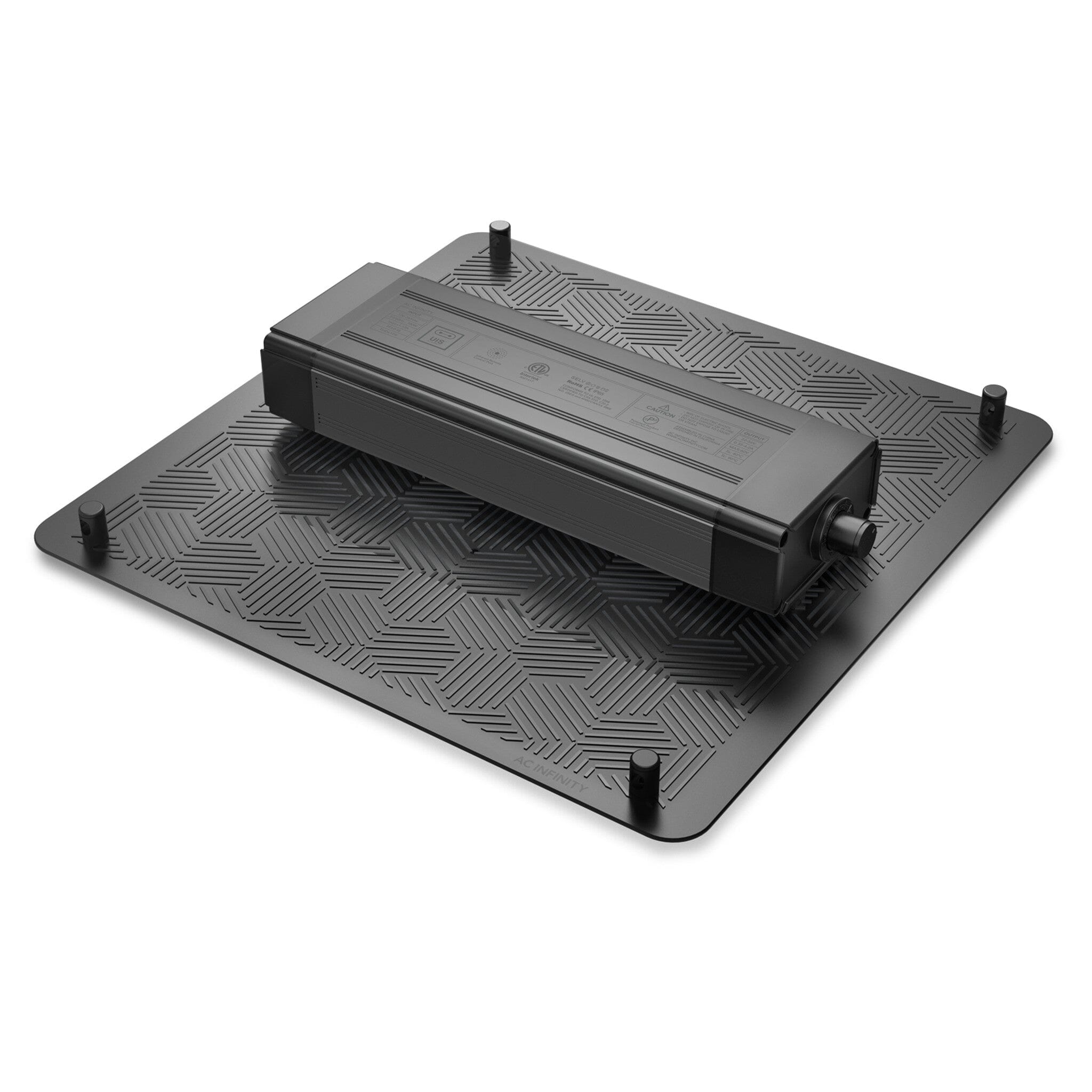

A full spectrum LED grow light designed with algorithmically positioned Samsung LM301H diodes to maximise plant yields. Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminium board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

OPTIMIZED SPECTRUM

Each light contains Horticulture Series Samsung LM301H 3000K and 5000K white diodes specifically formulated to help maximise plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

FUTURE READY CONTROLS

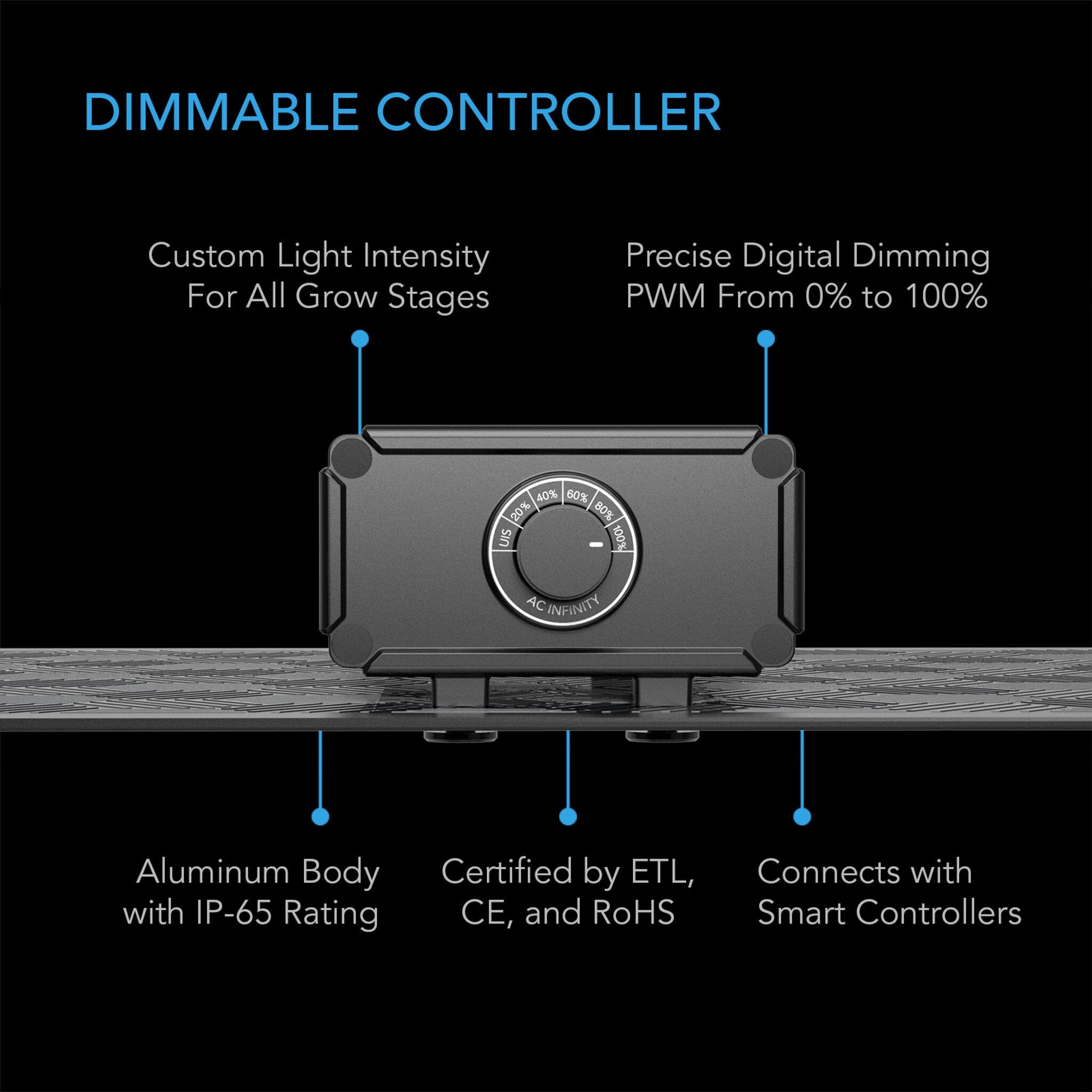

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.

Product Identification Ionboard S22 by AC Infinity
Manufacturer	AC Infinity Inc.
Product Name	IONBOARD S22
Product Model	AC-IBS22
UPC Code	819137022515

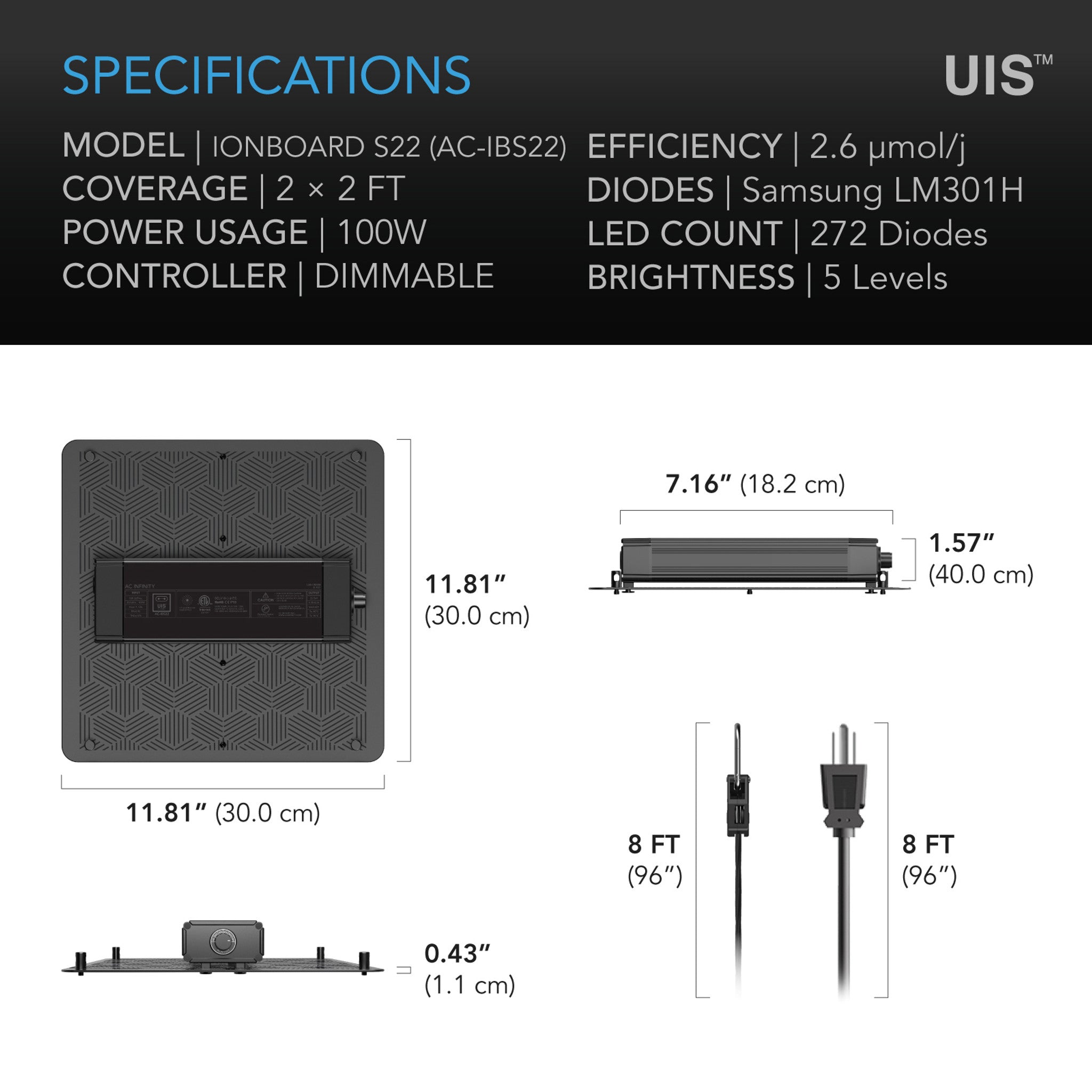

Product and Mounting Dimensions
Light Dimensions	11.81 x 11.81 in. (30.0 x 30.0 cm)
LED Board Thickness	0.43 in. (1.1 cm)
Driver Dimensions	7.16 x 1.57 in. (18.2 x 4.0 cm)
Product Performance and Technical Specs
Coverage	2 x 2 ft. 9  ( 60 x 60 cm )
Diodes	Samsung LM301H
LED Chip Count	272
LED Driver	AC Infinity Proprietary Driver, Model GTS-100
Efficiency	2.7 µmol/j
PPFD	998 PPFD
Spectrum	660nm, 730nm, 3000K, 5000K
Wattage	100 W
Voltage	100-277V AC
Frequency	50/60 Hz
Amps	0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V
Controller	Digital Dimming Timer
Power Connector Type	Australian Power Plug
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Life Expectancy	50,000 Hours
ETL Cert. (Whole Product)
Product Manual
Product Manual

Now ships with Australian power plug ready to connect.
