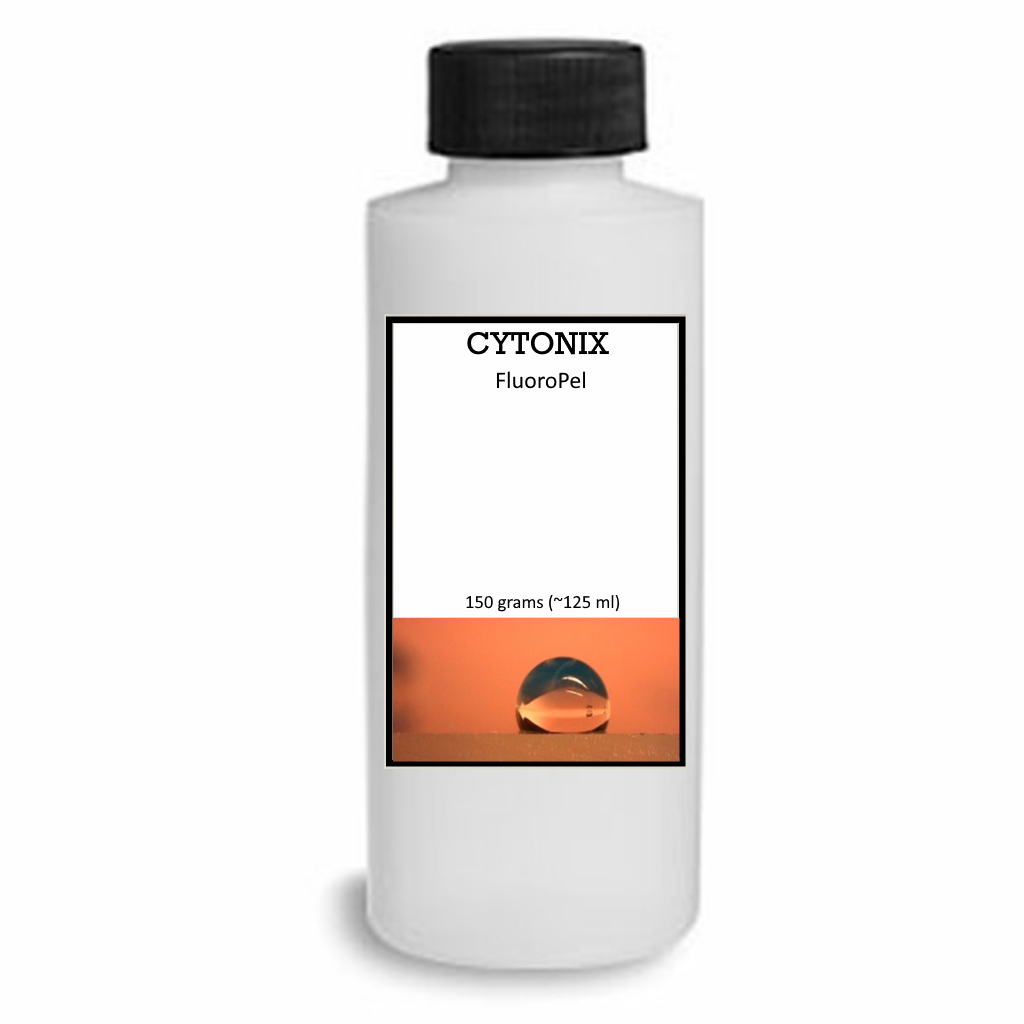

FluoroPel 800 is a hydrophobic and oleophobic versatile nano coating. It is fluoroacrylic polymer solution for coating membranes, glass, plastic, and metal surfaces. FluoroPel repels water, oils, solvents, buffers, and biofluids (blood, serum, urine, etc.). Thin films dry in a few minutes at room temperature and provide a surface with a contact angle to water of >110°. On membranes, mesh and filters, FluoroPel does not occlude pores and helps achieve oleophobicity grades up to 8. Formulations with fluorescent tracers are also available. FluoroPel is a good replacement for 3M Novec family of conformal coatings. Please contact Cytonix for help with product selection and applications.
Size: 150 grams (125 ml bottle)
Shelf life: Two years (in sealed unopened container)
Application methods: Immersion, spin, dipping, etc.
Curing: Air dry at room temperature in 5 minutes (and bake 50°C for 10 minutes if possible)
Appearance: Clear, odorless and colorless film
Contact angle to water: >110°
Contact angle to mineral oil: >65°
Oleophobicity grade: >6
Hardness: >2B pencil
Flammability: Non-burning
Tracer: UV tracer for quality control (at request)
Temperature range max: 175°C
Refractive index: ~1.34
Toxicity of films: HMIS Rating Health = 1
Ease of application: Excellent
Solvent/chemical resistance: Excellent after curing
Transparent: Yes
Gas permeable: Yes (at 0.2% concentration)
Electric conductivity: Yes (at <0.5 µm film thickness)
Ease of drying: Dries at room temperature in <5 minutes
Applications: Consumer electronics, Ruggedized electronics, PCBAs, Sensors, Optics, LEDs, Drone components, Avionics, Micro motors, Ball bearing tracks, Ink-jet print heads, Connectors, etc.
Application notes: Please make sure the substrate is free of dust and any other loose material. Dip the part in FluoroPel and allow to soak for about 30 seconds. Remove the part from the FluoroPel solution slowly (1 cm/second). The part will be dry in 60 seconds. If possible, bake at 60-100°C for 10 minutes to improve adhesion. FluoroPel can also be applied by spraying, spinning, damming, syringe-dispensing, etc.
