Airlift T14 Shutter Exhaust Ventilation Fan with Temperature & Humidity Controller 69 PRO - Ideal for Greenhouses, Grow Rooms, and Indoor Ventilation Systems
Free shipping on all orders over $50
7-15 days international
6 people viewing this product right now!
30-day free returns
Secure checkout
75587024
DESCRIPTION
UPGRADED WITH CONTROLLER 69 Pro ( BLUETOOTH AND WIFI control)

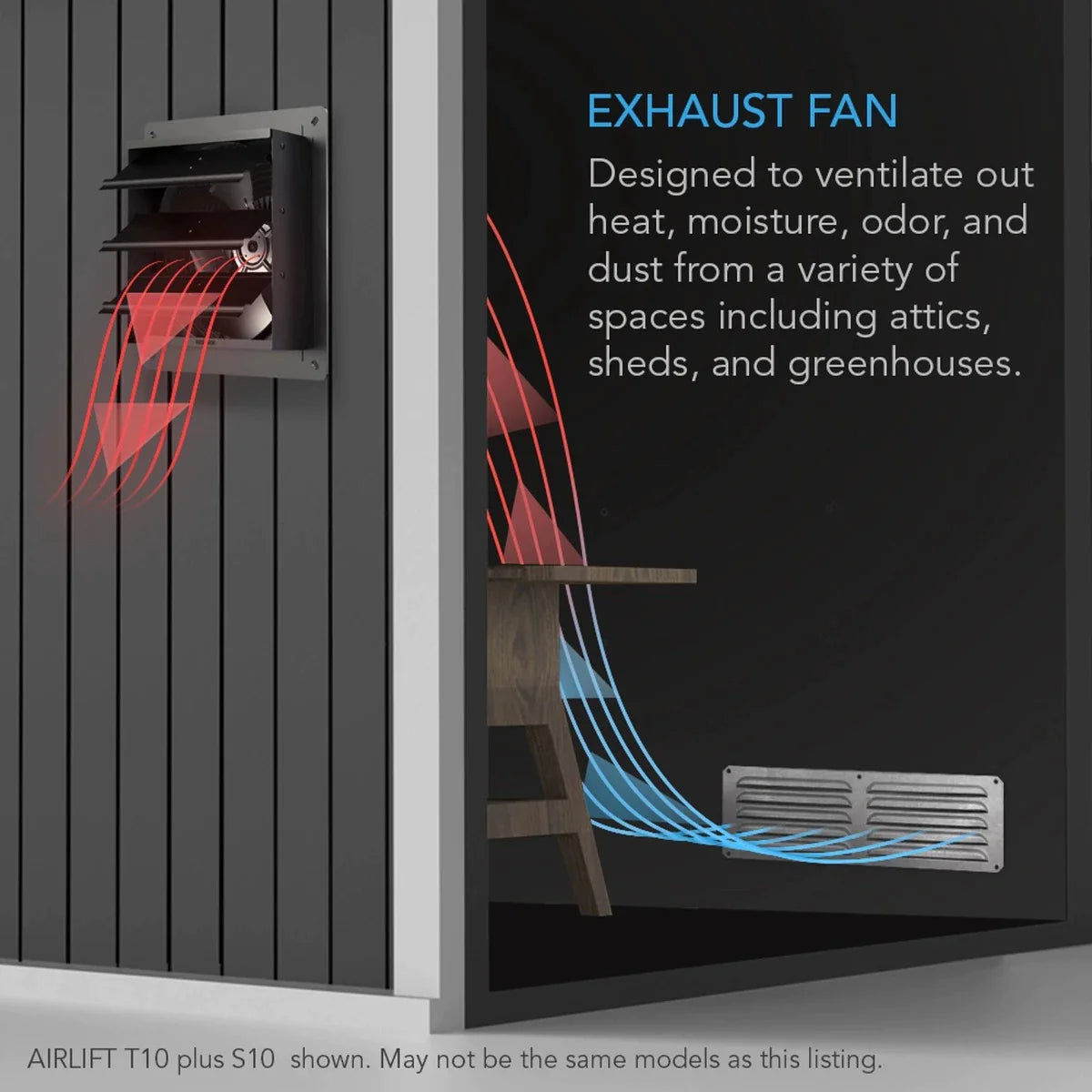

- A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.
- Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.
- Connect with our app via Bluetooth to access advance programs, alarms, notifications, and view climate data.
- Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.
- Fan Size: 14” | Dimensions: 16.93 x 16.93 x 8.1 in. | Airflow: 1513 CFM | Noise: 68 dBA | Bearings: Dual Ball
PRODUCT DESCRIPTION
A high-airflow exhaust fan designed to cool and ventilate greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms and buildings. Features an LCD display with remote smart temperature and humidity sensors, as well as customizable fan speeds. Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels. Heavy-duty build features aluminum blades, steel wire guards, and galvanized-steel shutters. Includes everything needed to mount the fan unit and power it through an outlet. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
SMART CONTROLLER
Features smart programming that not only has basic temperature and humidity triggers, but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for a variety of uses. Securely connect with the AC Infinity App via Bluetooth to access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to two AC Infinity fans with EC Motors including other AIRLIFT fan sizes, and CLOUDLINE inline duct fans.
HEAVY-DUTY PERFORMANCE

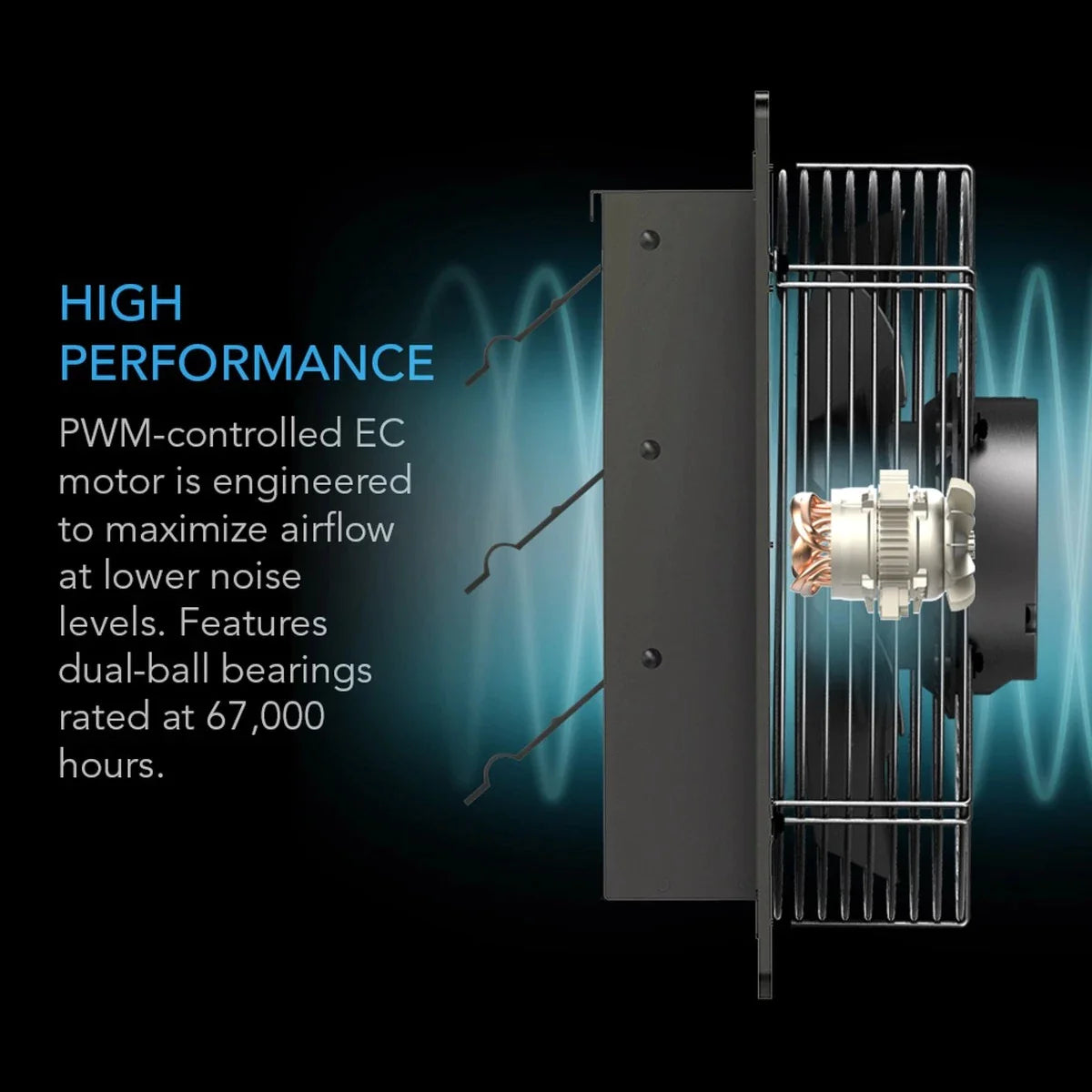

Features steel shutters that are weather and corrosion resistant, and automatically closes when not in use. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully-enclosed motor is also permanently lubricated and houses dual-ball bearings rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | AIRLIFT T14 |
| Product Model | AC-ALT14 |
| UPC Code | 819137020924 |
| Product and Mounting Dimensions - Fan Unit | |
| Total Dimensions | 16.93 x 16.93 x 8.1 in (43.0 x 43.0 x 20.6 cm) |
| Frontside Enclosure Dimensions | 14.52 x 14.52 in (36.9 x 36.9 cm) |
| Required Mounting Hole | 14.68 x 14.68 in (37.3 x 37.3 cm) |
| Hole to Hole Distance | 15.75 x 15.74 in (40.0 x 40.0 cm) |
| Screw Hole Size | Ø 0.27 in (Ø 0.7 cm) |
| Cord Length to Controller | 240 in (20 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Hole to Hole Distance | 4.71 x 2.64 in. (12.0 x 6.7 cm) |
| Screw Hole Size | Ø 0.119 in (Ø 0.3 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Cord Length to Plug | 96 in (8 feet) |
| Sensor Probe Length | 144 in. (12 feet) |
| Product Performance and Technical Specs | |
| Total Airflow | 1513 CFM |
| Total Noise | 68 dBA |
| Static Pressure | 70.46 Pa |
| Operating Voltage | 100-240V AC |
| Power | 70W |
| Current | 0.95 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Fan Bearings | Dual Ball |
| Life Expectancy | 67,000 Hours |
| CE Certification (Whole Product) |  |
| Product Manual | |
| Product Manual | |
Comes with Australian Power cord
AC INFINITY OFFERS A 2 YEAR WARRANTY ON ALL PRODUCTS
