- An antidraft duct insert designed for use with range hoods, bathroom fans and other home HVAC applications.
- Features outer rubber gaskets that create an airtight seal and grip between the damper and ducts.
- Mounts horizontally or vertically to prevent backflow and debris from entering ducting.
- Galvanised steel body with spring-loaded aluminium damper blades that open with minimal airflow.
- Fit for 6 in. Duct Openings | Product Length: 5.03 inches | Finish: Powder Coat
PRODUCT DESCRIPTION
A ventilation ducting tool designed for insertion into 6” ducting to prevent cold drafts and debris from flowing into ventilation systems. Built to be embedded in ducts, the backdraft damper is made of sturdy galvanised steel and features two rings of outer rubber gaskets. This enables it to grip your ducting with an airtight seal in either a horizontal or vertical orientation. The butterfly damper blades are made of aluminium and are equipped with a light spring that folds with minimal airflow.
APPLICATIONS
The spring-loaded antidraft damper is built for heavy-duty performance in applications like overhead range hoods in kitchens, bathroom fans and tumble dryers. It can be fully or partially inserted into your duct work using the rubber rings to hold itself in place. Other one-way airflow uses include keep pilot lights burning in water heaters and keeping debris from entering inline duct fans in grow tents.
| Product Identification Backdraft Damper 6 Inch ( 150 mm) |
| Manufacturer | AC Infinity Inc. |
| Product Name | Backdraft Damper, 6" |
| Product Model | AC-BDD6-B |
| UPC Code | 819137021310 |

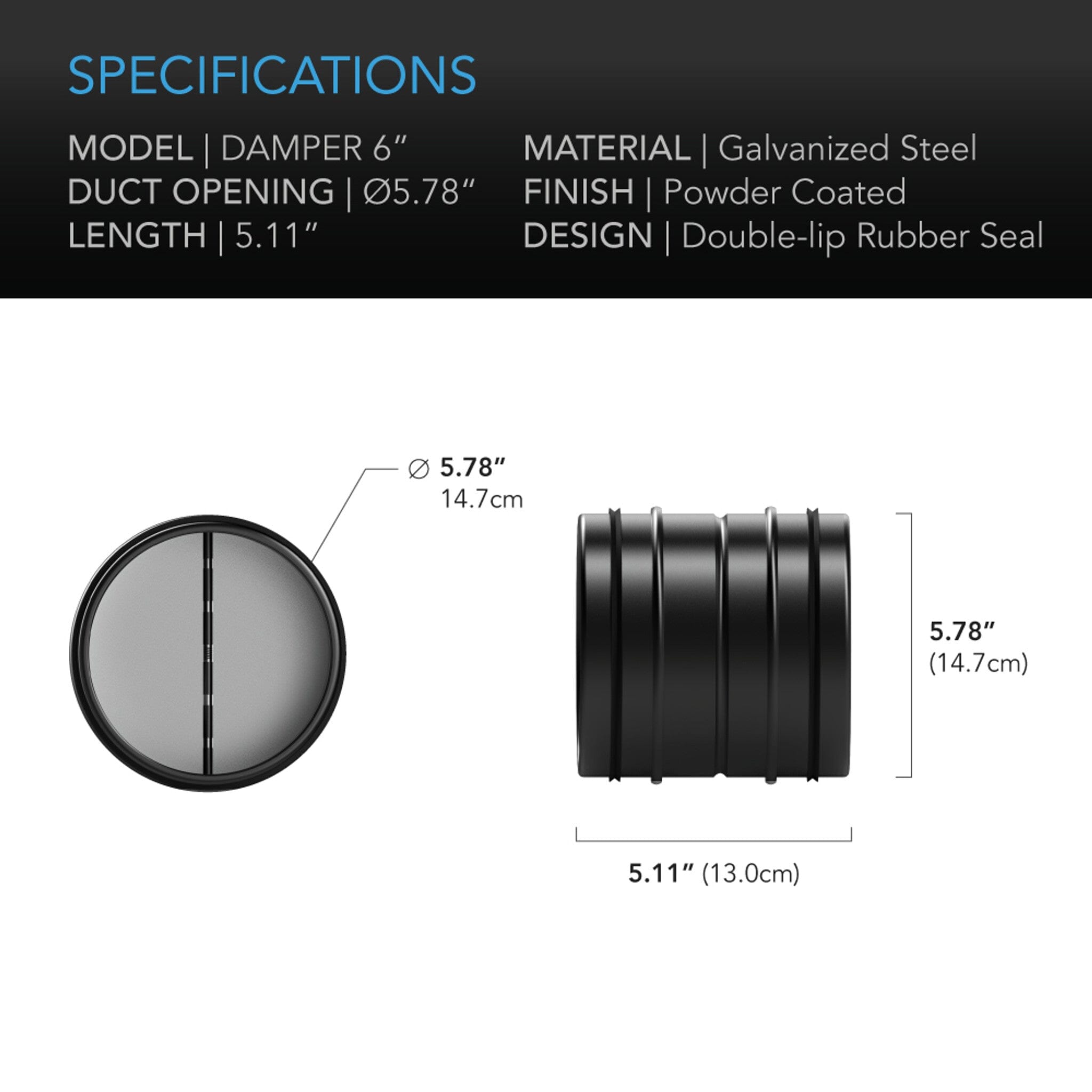

| Product and Mounting Dimensions |
| Duct Opening Size | 6" |
| Product Length | 5.03 in. (12.8 cm) |
| Product Performance and Technical Specs |
| Whole Body Material | Steel |
| Shutter Material | Aluminum |
| Color | Black |
| Finish | Powder Coat |
